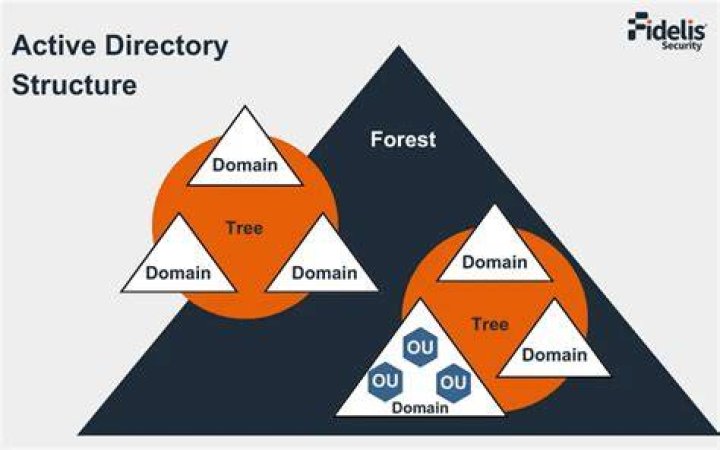

Active Directory (AD) is a Microsoft technology used to manage computers and other devices on a network. … The Active Directory structure includes three main tiers: 1) domains, 2) trees, and 3) forests. Several objects (users or devices) that all use the same database may be grouped into a single domain.
How can I see the Active Directory structure?
Select Start > Administrative Tools > Active Directory Users and Computers. In the Active Directory Users and Computers tree, find and select your domain name. Expand the tree to find the path through your Active Directory hierarchy.
What is Active Directory used for?
Active Directory helps you organize your company’s users, computer and more. Your IT admin uses AD to organize your company’s complete hierarchy from which computers belong on which network, to what your profile picture looks like or which users have access to the storage room.
What is tree and forest in Active Directory?
The main difference between Tree and Forest in Active Directory is that Tree is a collection of domains while forest is a set of trees in active directory. … It stores information on objects such as user, files, shared folders and network resources.
What is a forest in Active Directory?
An Active Directory forest is the highest level of organization within Active Directory. Each forest shares a single database, a single global address list and a security boundary. By default, a user or administrator in one forest cannot access another forest.
What is Fsmo in Active Directory?
Flexible Single Master Operations (FSMO, F is sometimes “floating”; pronounced Fiz-mo), or just single master operation or operations master, is a feature of Microsoft’s Active Directory (AD). As of 2005, the term FSMO has been deprecated in favour of operations masters.
What is the top level of Active Directory?
The top-level container is the forest. Within forests are domains, and within domains are organizational units (OUs).
What is domain controller in Active Directory?
A domain controller (DC) is a server that responds to security authentication requests within a Windows Server domain. … A domain controller is the centerpiece of the Windows Active Directory service. It authenticates users, stores user account information and enforces security policy for a Windows domain.
What are the 5 roles of Active Directory?
- Schema master.
- Domain naming master.
- RID master.
- PDC emulator.
- Infrastructure master.
How many types of Active Directory are there?
There are technically 7 different types of Active Directory. Each of them are deployed in different way, places and for different purposes.
Article first time published on
What is difference between AD and LDAP?
active directory is the directory service database to store the organizational based data,policy,authentication etc whereas ldap is the protocol used to talk to the directory service database that is ad or adam. LDAP sits on top of the TCP/IP stack and controls internet directory access.
What is Active Directory in Azure?
Azure Active Directory (Azure AD) is Microsoft’s cloud-based identity and access management service, which helps your employees sign in and access resources in: External resources, such as Microsoft 365, the Azure portal, and thousands of other SaaS applications.
What is difference between forest and domain in Active Directory?
The main difference between Forest and Domain is that the Forest is a collection of domain trees in an active directory while Domain is a logical grouping of multiple objects in an active directory. … Usually, there are multiple active directory objects which denotes the physical entities of a network.
How many forests are there in Active Directory?
Every Active Directory has at least one AD forest, and there are cases where multiple AD forests are required to meet business and security objectives.
Is Active Directory an LDAP?
LDAP is a way of speaking to Active Directory. LDAP is a protocol that many different directory services and access management solutions can understand. Active Directory is a directory server that uses the LDAP protocol. …
What happens when PDC is down?
The PDC Emulator is the operations master that will have the most immediate impact on normal operations and on users if it becomes unavailable. Fortunately, the PDC Emulator role can be seized to another domain controller and then transferred back to the original role holder when the system comes back online.
What is the RID master?
The RID Master FSMO role owner is the single DC responsible for processing RID pool requests from all DCs within a given domain. It is also responsible for moving an object from one domain to another during an interdomain object move.
What is Active Directory example?
Active Directory (AD) is a database and set of services that connect users with the network resources they need to get their work done. … For example, the database might list 100 user accounts with details like each person’s job title, phone number and password. It will also record their permissions.
What is LDAP and Ldaps?
What is LDAP and LDAPS? LDAP (Lightweight Directory Application Protocol) and Secure LDAP (LDAPS) is the connection protocol used between Mimecast and the Network Directory or Domain Controller within the customer’s infrastructure. LDAP transmits communications in Clear Text, and LDAPS communication is encrypted.
What ports are needed for Active Directory?
Client PortsServer PortProtocol1024-65535/TCP1723/TCPPPTP
What is the difference between DNS and domain controller?
A DNS (Domain Name Service) provides name resolution services. It translates friendly URLs into IP addresses that the computer can understand. A domain controller runs active directory on a computer network. It authenticates users and devices and organizes the network.
What are the group types in Active Directory?
- Universal.
- Global.
- Domain Local.
What is Kerberos in Active Directory?
Overview. Kerberos is a network authentication protocol. It is designed to provide strong authentication for client/server applications by using secret-key cryptography.
Does SAML use LDAP?
SAML itself doesn’t perform the authentication but rather communicates the assertion data. It works in conjunction with LDAP, Active Directory, or another authentication authority, facilitating the link between access authorization and LDAP authentication.
What is Ldaps port?
LDAPS communication occurs over port TCP 636. LDAPS communication to a global catalog server occurs over TCP 3269. When connecting to ports 636 or 3269, SSL/TLS is negotiated before any LDAP traffic is exchanged.
Is Azure Active Directory SaaS or PaaS?
Is Azure AD SaaS or PaaS? Office 365 is a SaaS , which provides an online version of MS Office Suite (Office Web Apps) along with SharePoint Server, Exchange Server, and Lync Server. Windows Azure is both IaaS and PaaS, which makes the Windows Server operating system and other features available as services.
What is the difference between Azure Active Directory P1 and P2?
What’s the Difference Between P1 and P2 There are three core differences between P1 and P2. Firstly, P2 has Identity Protection, which lets you manage conditional access to apps. Secondly, P2 gives you Privileged Identity Management (PIM). That means you with additional management over privileged accounts.
Can Azure replace Active Directory?
Unfortunately, the short answer to that question is no. Azure AD is not a replacement for Active Directory. … You can synchronize your on-premises directories (Active Directory or other) to Azure Active Directory but not migrate your computer accounts, group policies, OU etc.
What is the most typically used boundary for an Active Directory site?
Active Directory forests are the highest level of security boundary for network objects in the Active Directory tree and forest structure. Within this Active Directory hierarchy, an AD forest is considered the most important logical container in an Active Directory configuration.
